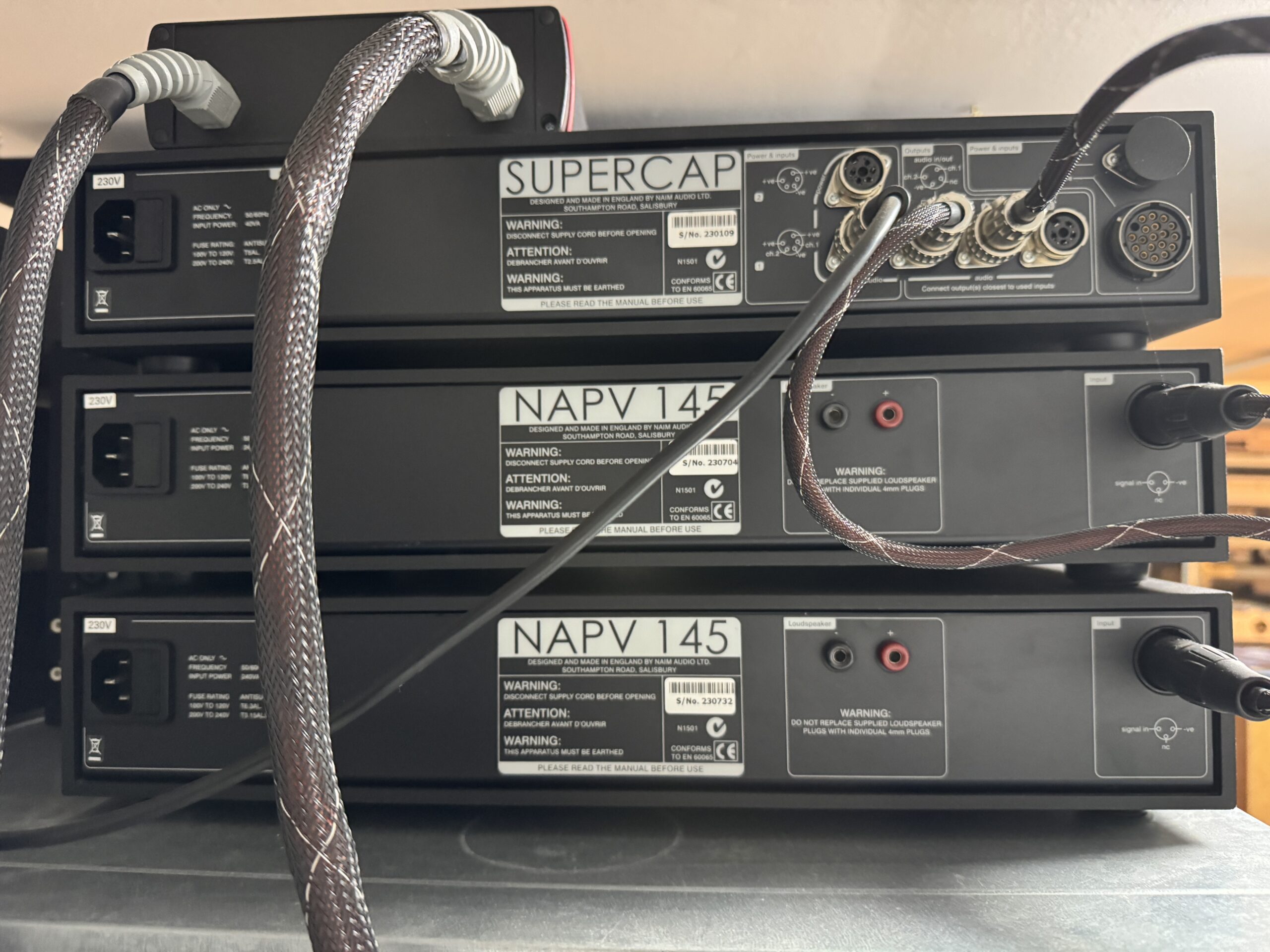

NAPV 145 -Два моноблока.
Frequency Response -3dB at 3Hz – 50kHz
80W (mono) output into 8 ohms
Custom-designed transformer providing 400VA of transient power.
SUPERCAP-Захранване за NAPV 145.
13 x 24V outputs, 2 x 12V output
All-new Discrete Regulator (DR) configuration, delivering Naim Audio’s
best-ever standards of stable, low-noise power

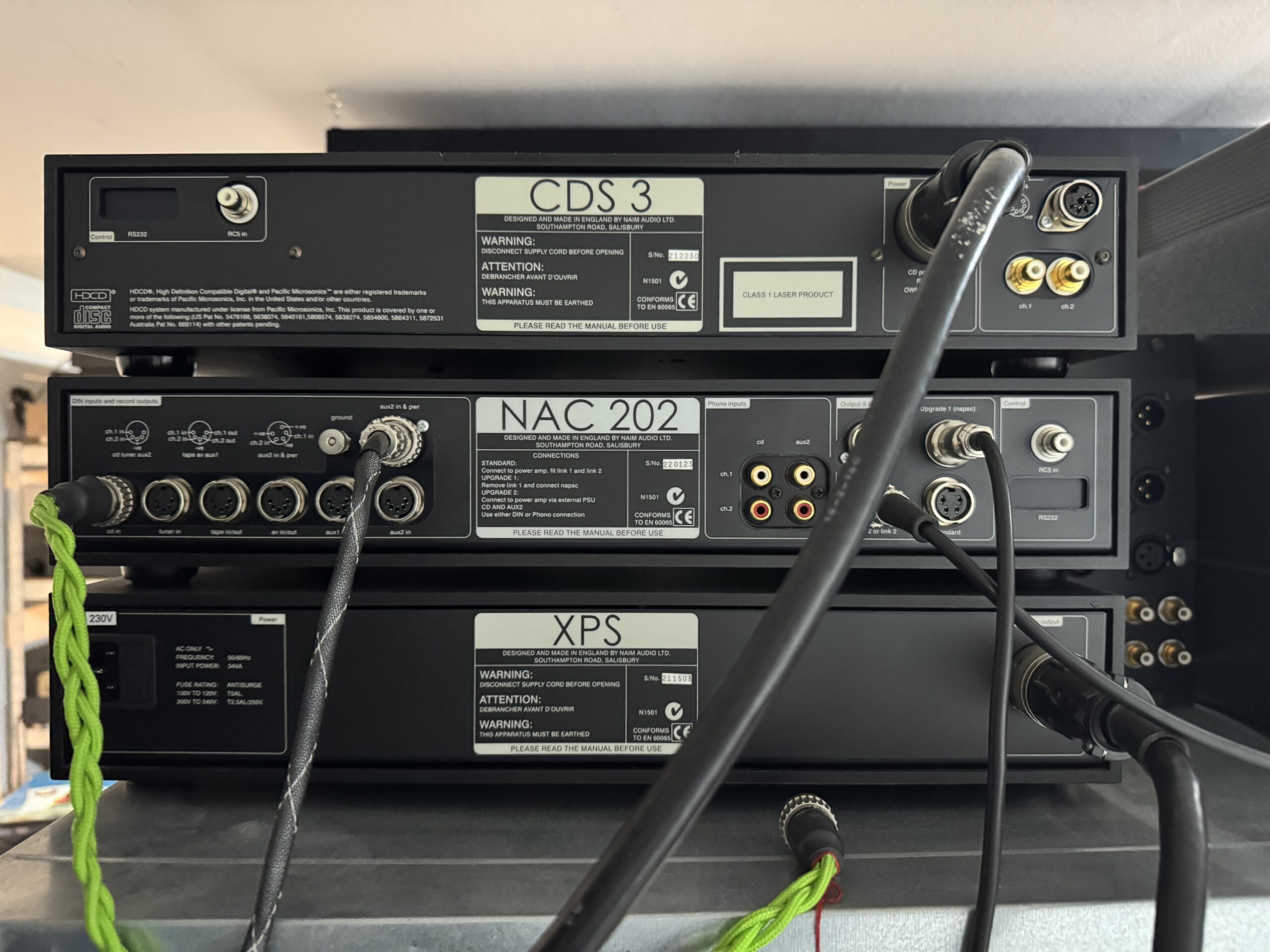

CDS3 -CD Player.
Philips CD10 transport,24-bit – 8 times oversampling
digital filter with HDCD
2 x Burr-Brown PCM 1704-K, 24-bit mono D to A converters.
HDCD decoding is only activated when playing encoded discs.
XPS-Захранване за CDS3.
Naim Audio XPS е изключително усъвършенствано захранване с шест отделно регулирани изхода с много нисък шум, включващо огромен тороидален трансформатор и шест регулатора на мощността.

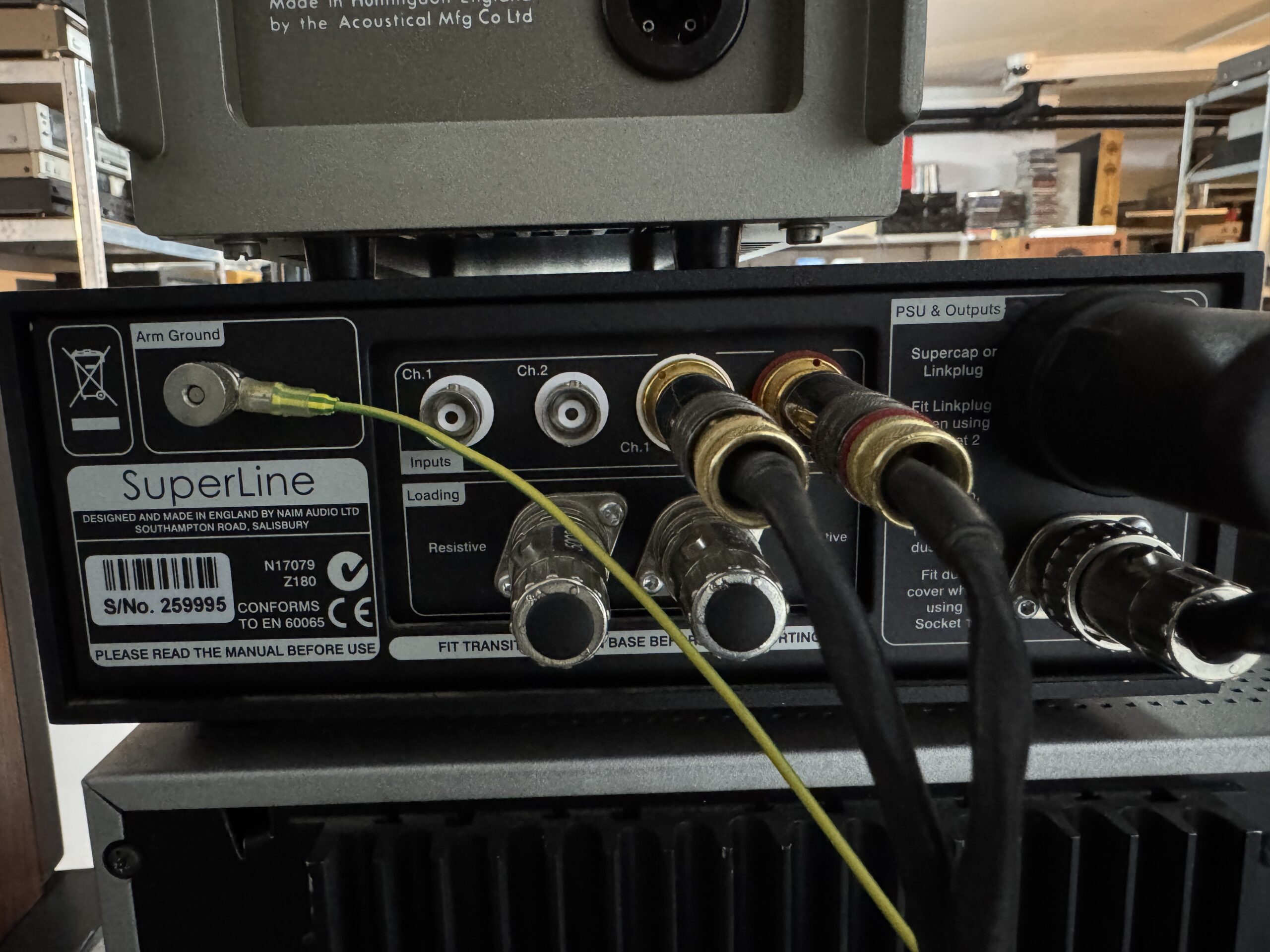

SuperLine-Reference MC Phonostage.
AUDIO INPUTS
– Analogue Inputs: BNC, RCA
– Sensitivity: 100 microV to 500 microV
– SuperLine E: 200 microV to 1mV
– Other: 2 x 5-pin DIN loading plugs
AUDIO OUTPUTS
– Gain: 64dB at 1kHz, SuperLine E: 58dB at 1kHz
– Frequency Response: 10Hz to >200kHz -3dB
thd+n: <0.005% (500 microV @ 1kHz)
– S/N Ratio: 82dB ref 500 microV, 0 micro(A-weighted)
– SuperLine E: 78dB ref 500 microV, 0 micro (A-weighted)
– Crosstalk: >80dB (20Hz to 20kHz)
PHONO SPECIFIC
– RIAA Accuracy: ±0.1dB (20Hz-20kHz)
– High Pass Filter: 10Hz
– Input Overload: 5mV rms (1kHz)
– SuperLine E: 10mV rms (1kHz)
– Load: 10/1kOhm, 500/220/100Ohm
– Input Option:100pF, 1nF, 5.6nF, 10nF
NAC 202-Прeдусилвател.
Inputs: AV input configurable for unity gain
Input impedance: 47 kOhm
Analog inputs: 4 x DIN, RCA
Input sensitivity: 75 mVAudio outputs
Line outputs variable (level): 775 mV
Line outputs fixed (level): 75 mV, 600 Ohm
Load impedance: 10 kOhm (min.)
Output impedance: <50 Ohm
Analog: 2 x variable, 3 x line level
Power outputs: For Naim phono amplifier
Upgrades: 1 x HiCap/SuperCap

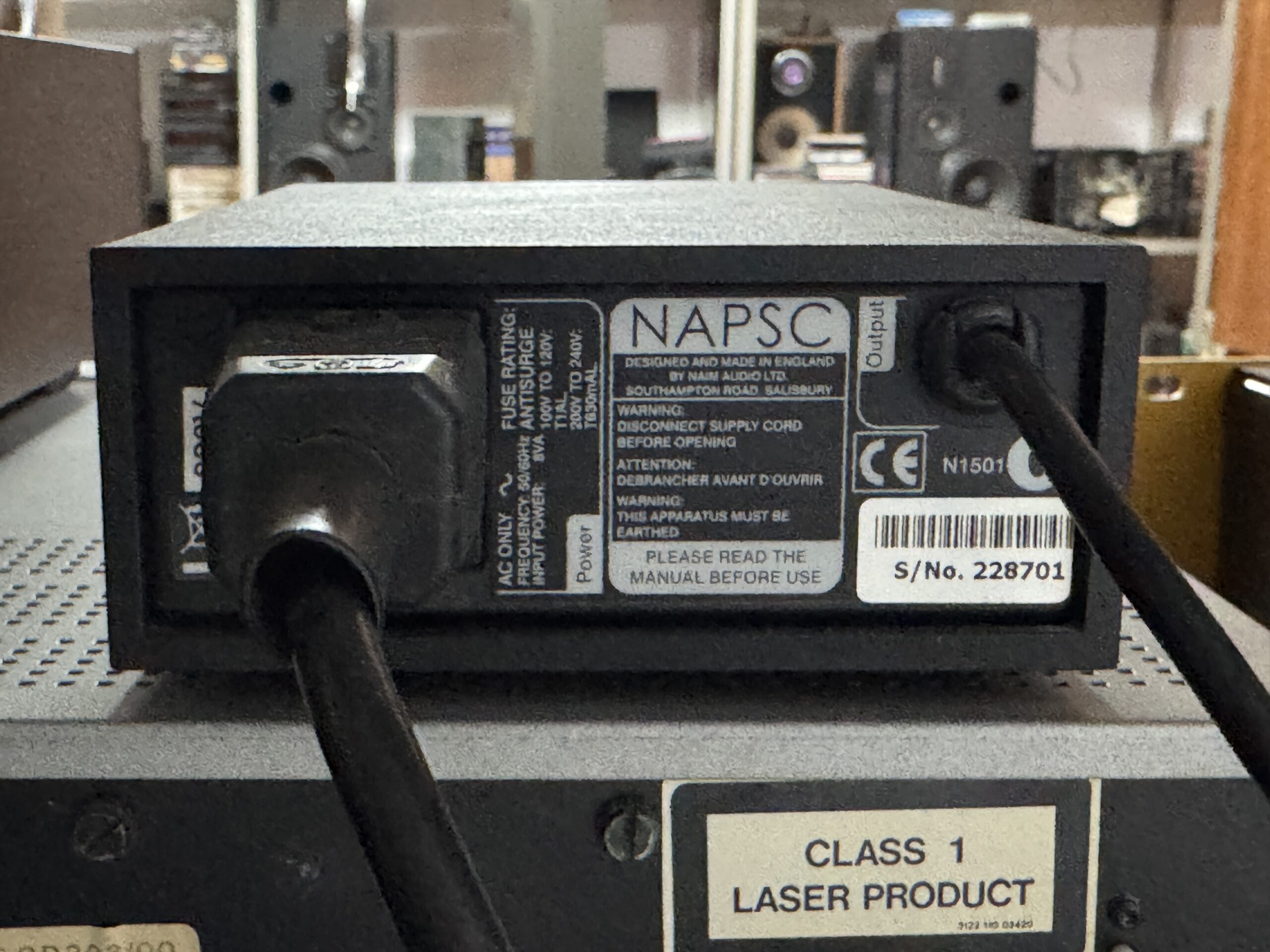

NAPSC-Захранване за NAC 202 и 282.
Naim NAPSC е съществена надстройка за NAC 202.
Naim Burndy SNAXO / SuperLine 17 Pin Interconnect.
Цена за сета:19 000 лв.
